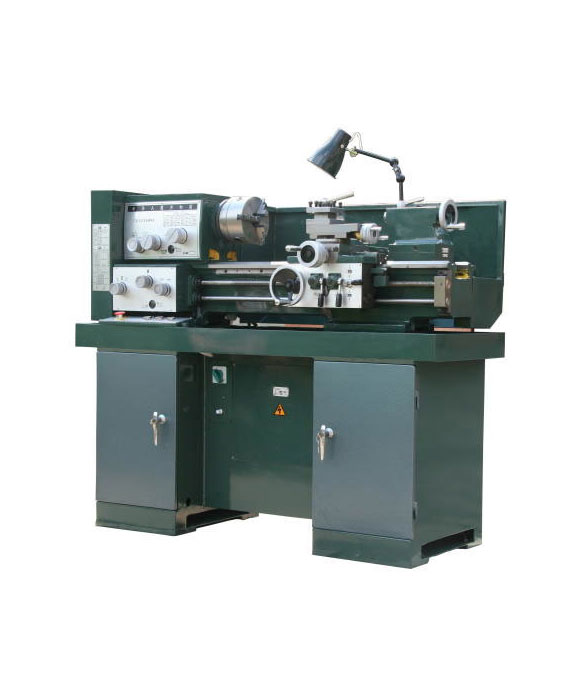

- This machine tool can assume all kinds of turning works, it can turnings many kinds of the metric threads, the inch threads, the modutus pitches, the diametrical pitches which are in commen use, and it can bore, heaming, scraping oilcan.

- This tool is used of high intensity of cast iron, the surface of guideway has been quenched with high frequency, then it has been elaborate milling. It has high precision and long life.

- The gears of the headstock have been quenched with high frequency and elaborate milling, theyhave high precision and low noises.

Max swing over bed : 300mm
Range of spindle speeds (9) : 60~2245r/min
Motor power : 1.1kw
Overall dimensions (LxWxH) : 1420 x 720 x 1155mm
Weight : 568kgs
