- Basic parts like bed and column are cast in resin bonded sand with high strength and low stress, possessing good accuracy and stability.
- It adopts bed type layout and horizontal cross feed unit. In addition, the headstock is balanced by heavy punch, making its movement smooth and flexible.
- That spindle adopts stepless speed regulation and the main transmission has position feedback can realize high speed rigid tapping.
- Full protection (without top) and mechantronics design make the machine has reasonable layout, clean and enviro nmental convenient to operate and simple to maintain.

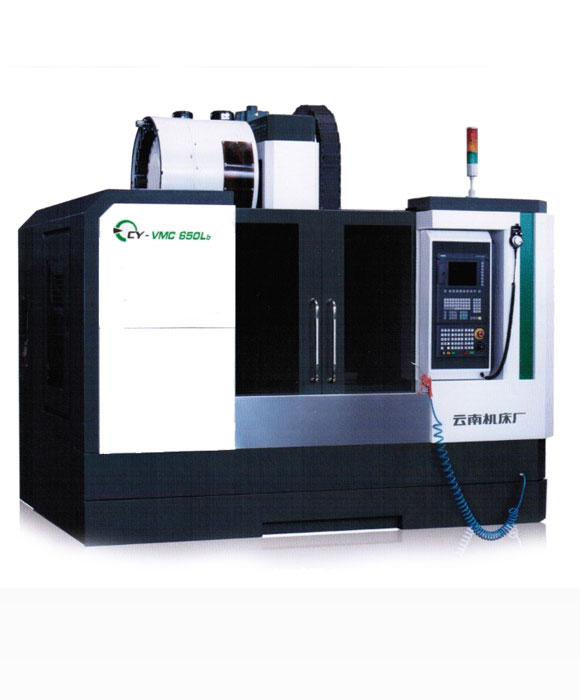

Machine type : CY-VMC650
X/Y/Z axis travel : 650/400/480mm
Spindle Range of Speed : 50-8000r/min
Work table size : 800 x 420mm
Max loading : 600kg
Machine weight : 4500/5000 kg
