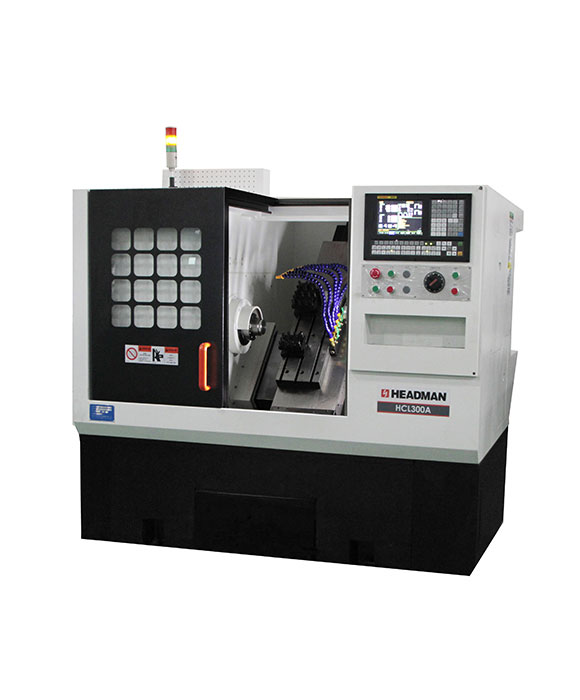

CHINA CNC GANG TYPE LATHE - HCL300A
Model: HCL300A
| Machine type | : | HCL300A |
 |
||
| Max. swing diameter | : | 520mm |
|
||
| Max. workpiece diameter over slide | : | 160mm |
|
||
| Chuck Size | : | Collet |
|
||
| Max.Machining length | : | 380mm |
|
||
| Spindle bore diameter | : | 45mm |
|
||
| Max. bar diameter/standard bar diameter | : | 35mm |
|
||
| Machine Size (HxWxL) | : | 1800mm x 1614mm x 2180mm |
|
||
| Machine weight(standard machine) | : | 2150kg |
|
||
