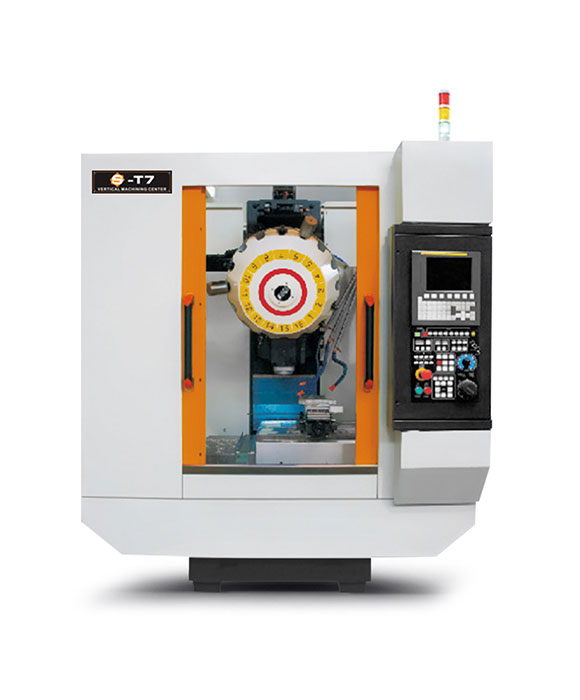

SUNSHINE CNC TAPPING AND DRILLING

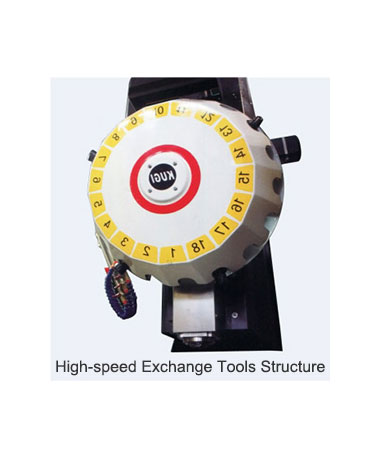

Fast Move Speed Cooperate With High-speed Tools Changing
Structure, Can Show The Machining Efficiency Much More
| Machine type | : | T7 |
 |
||
| X/Y/Z axes travel | : | 700/400/400mm |
|
||
| Spindle nose to work table | : | 130-530mm |
|
||
| Work table size | : | 850 x 420mm |
|
||
| Max loading | : | 450kg |
|
||
| T-slot(number-size*distance) | : | 3-14 x 100mm |
|
||
| 3 axes rapid move speed | : | 48/48/48m/min |
|
||
| Cutting feed speed | : | 10000mm/min |
|
||

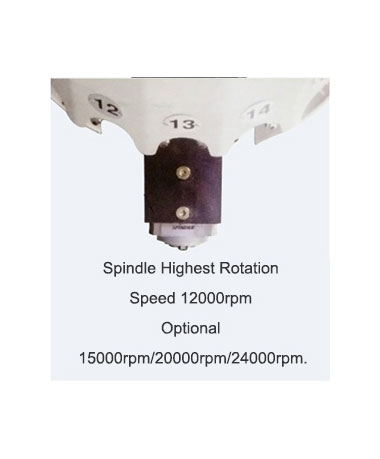

| Spindle Rotation Speed | : | 12000/15000/20000/24000rpm |
|
||
| Spindle taper | : | BT30 |
|
||
| Spindle motor | : | 5.5kw |
|
||
| 3 axes motor（X/Y/Z) | : | 1.5/1.5/3kw |
|
||
| Position precision | : | ±0.005/300mm |
|
||
| Repeat position precision | : | ±0.003mm |
|
||
| Automatic tools change type | : | 16T/21Tpcs |
|
||
| Machine weight | : | 3900kg |
|
||
| Machine size | : | 2000 x 2600 x 2450mm |
|
||
