Product Feature

1.Multi-cutting function
2.Best roughness Ra<0.6um
3.Max.cutting speed hit 300mm2/min
4.With advanced and particular pluse power, gets lower loss.The diameter of wire wore 0.005mm in 200000mm2 cutting.
5.Professional high-quality industry computer and international brand parts makes the products good performance.
6.X/Y/U/V adopt Japanese Mitsubishi AC servo driver and motor,which have stable and reliable performance
7.High precision ball screw and linear guide-way improve the positioning precision of the machine tool and realize the function of pitch compensation
8.High-strength resin castings ensure the machine body having enough rigidity and strength
9.Handy control

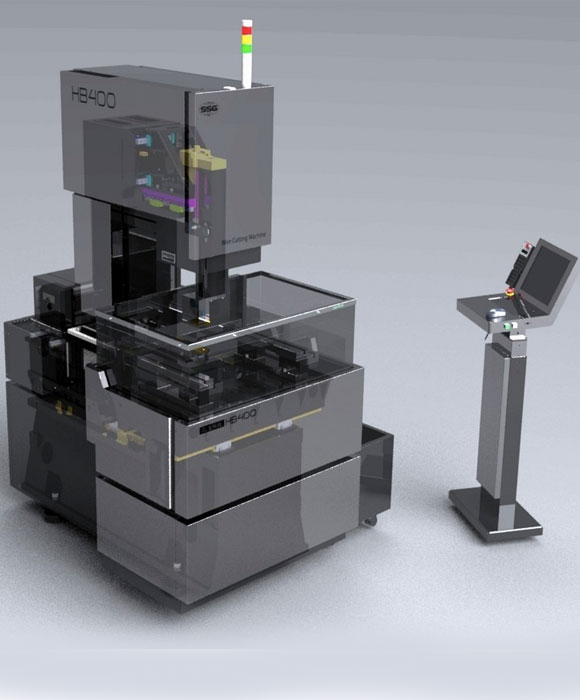

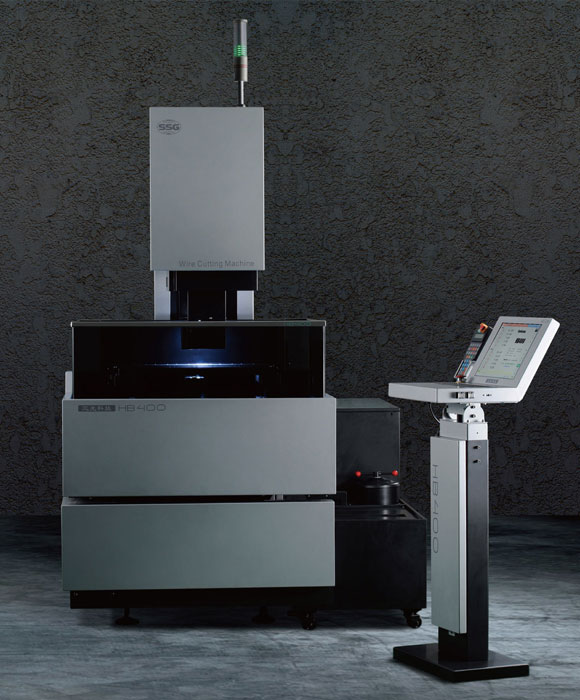

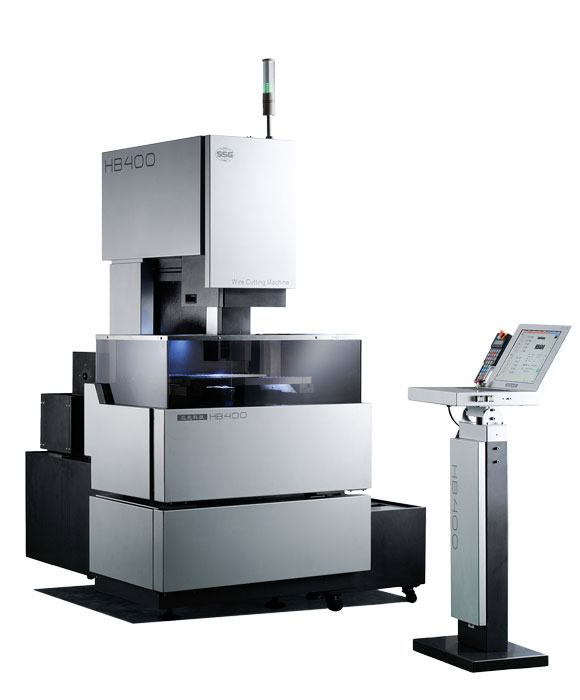

Machine type	:	HB400
Worktable travel (X×Y)	:	400×300mm
Max.workpiece thickness	:	300mm
Max.part weight	:	500Kg
Max taper angle/height	:	±10°/100mm
Max.machining speed	:	>300 mm²/min
Max. machining currents	:	12A
Diameter of wire	:	0.13 ~ 0.25mm
Machine tool dimensions (W×D×H)	:	2010mm×1650mm×2100mm
Best roughness	:	Ra≤0.6µm
Machine weight	:	1500kg
